吸濕器
分享

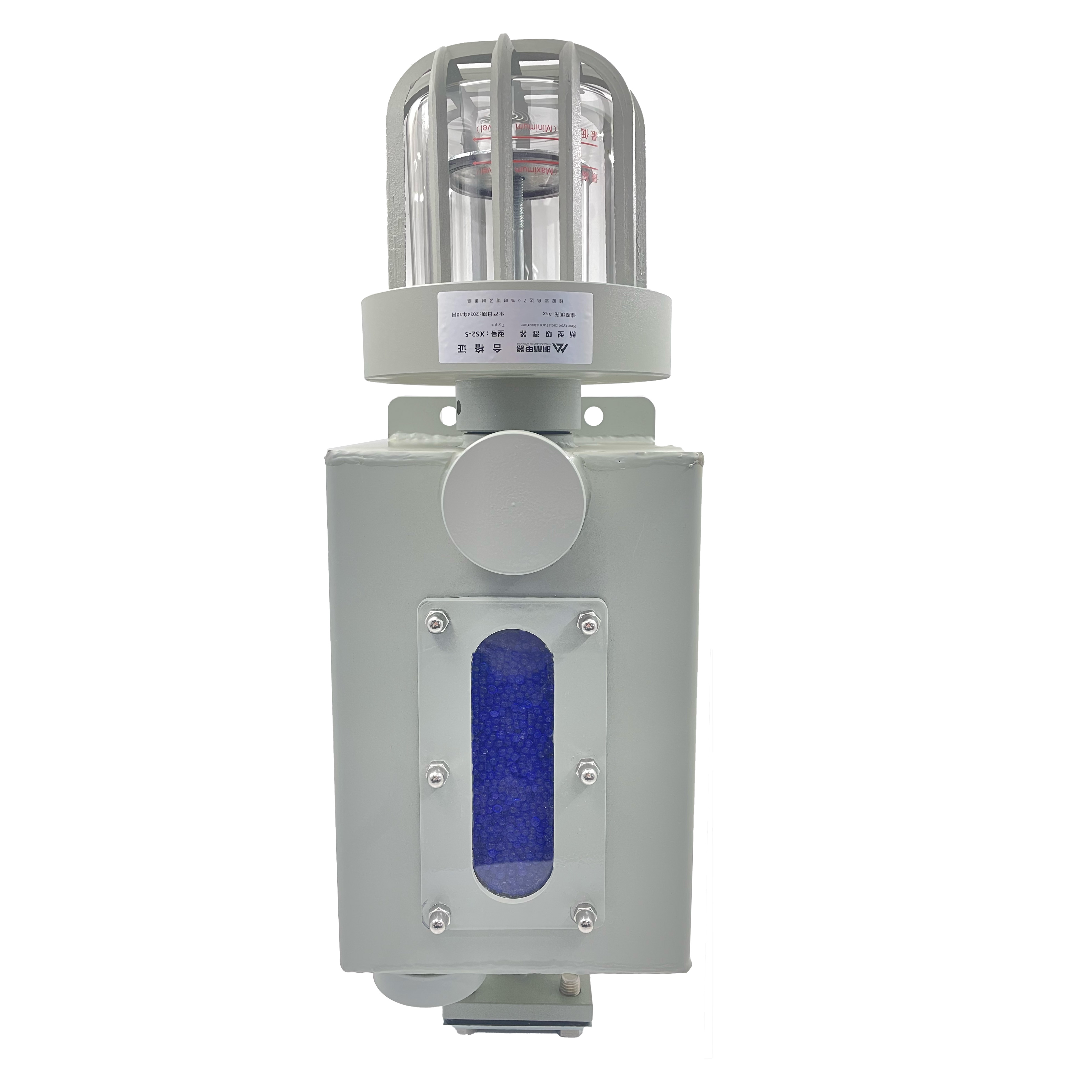

吸濕器是用于油浸式電力變壓器和有載分接開關及儲油罐等設備上的空氣凈化裝置。它安裝在儲油柜的進氣口上，當油面下降時，進入儲油柜的空氣，經吸濕器凈化，可有效地濾除空氣中的雜質和水分，以保持變壓器的清潔和絕緣強度。
18940158172
產品詳情
1. 產品用途：1. Product purpose:
吸濕器是用于油浸式電力變壓器和有載分接開關及儲油罐等設備上的空氣凈化裝置。它安裝在儲油
柜的進氣口上，當油面下降時，進入儲油柜的空氣，經吸濕器凈化，可有效地濾除空氣中的雜質和水分，
以保持變壓器的清潔和絕緣強度。
A moisture absorber is an air cleaning device used on the immerged oil type of electric power
transformer and the load link switch as well the oil tank etc. It is installed on the inlet of the oil tank.
When the oil level is low, the air comes into the oil tank. After it passes through the absorber to clean,
water and impurity are removed from the air to keep the clearness and the insulation strength of the
transformer.
2. 基本參數及主要性能指標：
2. Basic parameters and main performance indicators

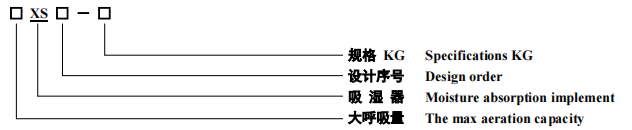

2.1 產品型號：
2.1 Product model
2.2 適應地區：一般地區和濕熱帶地區。
2.2 The suitable area: a common area and a wetting hot area.
2.3 使用環境：空氣中水分在非結晶環境下均有效。
2.3 The use environment: water in air under a non crystal state.
2.4 吸附材料種類：白色硅膠；藍色硅膠；黃色環保硅膠。
2.4 Type of Adsorption Materials: White Silica Gel, Blue Silica Gel, Yellow Environmental Protection
Silica Gel
2.5 吸濕材料規格：材料顆粒 3～5mm
2.5 Moisture absorption material specification: material grain 3～5mm
2.6 吸濕材料吸附能力。
2.6 Absorption capacity of moisture absorption materials
在溫度為 20℃時，不同的相對濕度下吸附能力見下表。
When temperature is 20℃, for absorption capacity under different relative humidity, see the Table.
相對濕度 Relative humidity
RH20%
RH40%
RH80%
吸附量 Absorption amount
≥8.0%
≥20%
≥30%

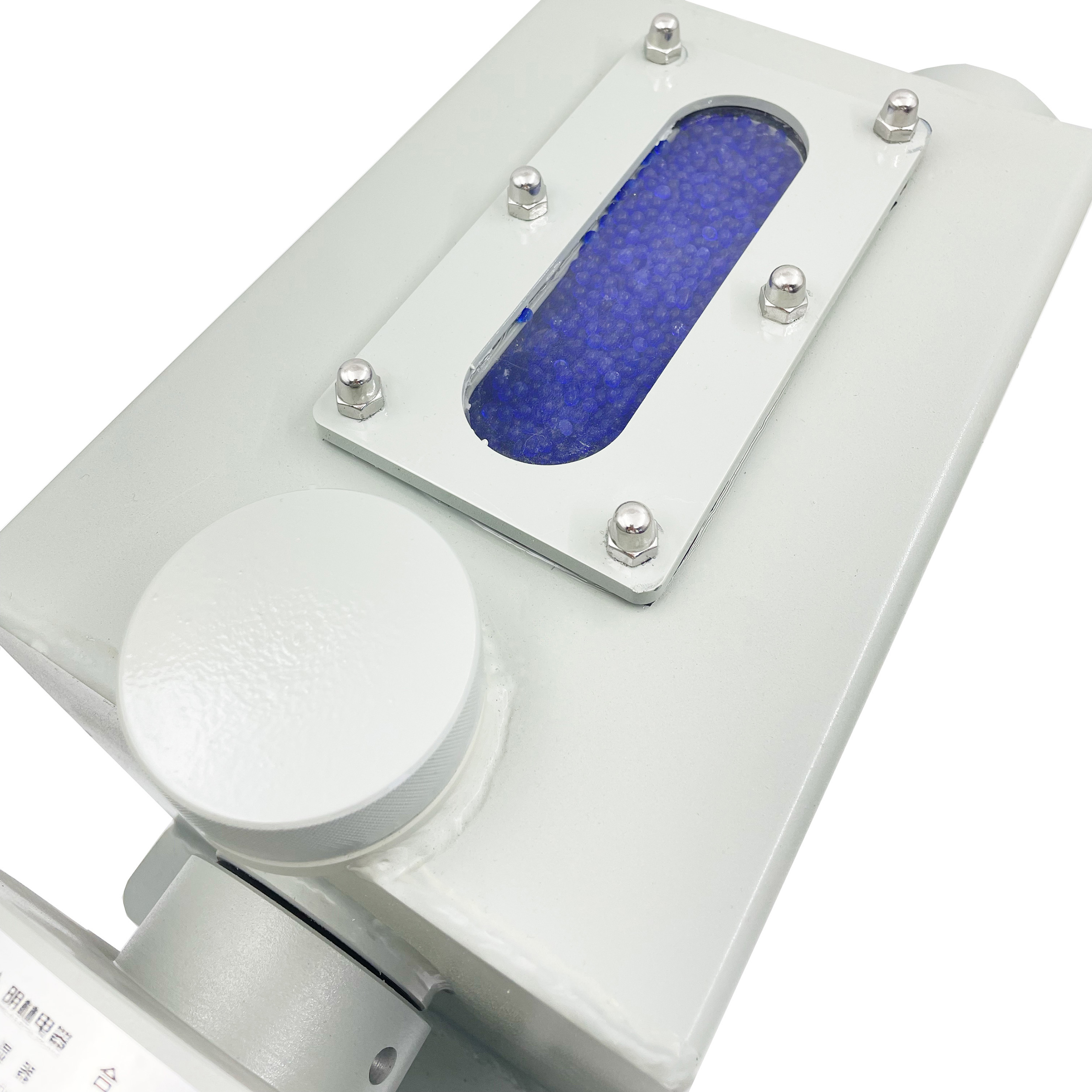

2.7 吸附材料的指示功能：
2.7 The indication function of the changed color silica gel
白色硅膠吸水后逐漸顯示光亮，藍色硅膠吸水后逐漸變紅，黃色環保硅膠吸水后逐漸變?yōu)槟G色。
After absorbing water, the white silica gel will be lightening, the blue silica gel will become red and the
yellow environmental protection silica gel will become dark green.
